Full-service roll & mill component solutions
Bowers & Jones manufacture rolls and wheels for copper rod mills and continuous rotary extrusion machines. Produced in a range of high performance steel grades, our products offer the customer much improved properties compared to conventional tooling, for a stable manufacture and longer service life.

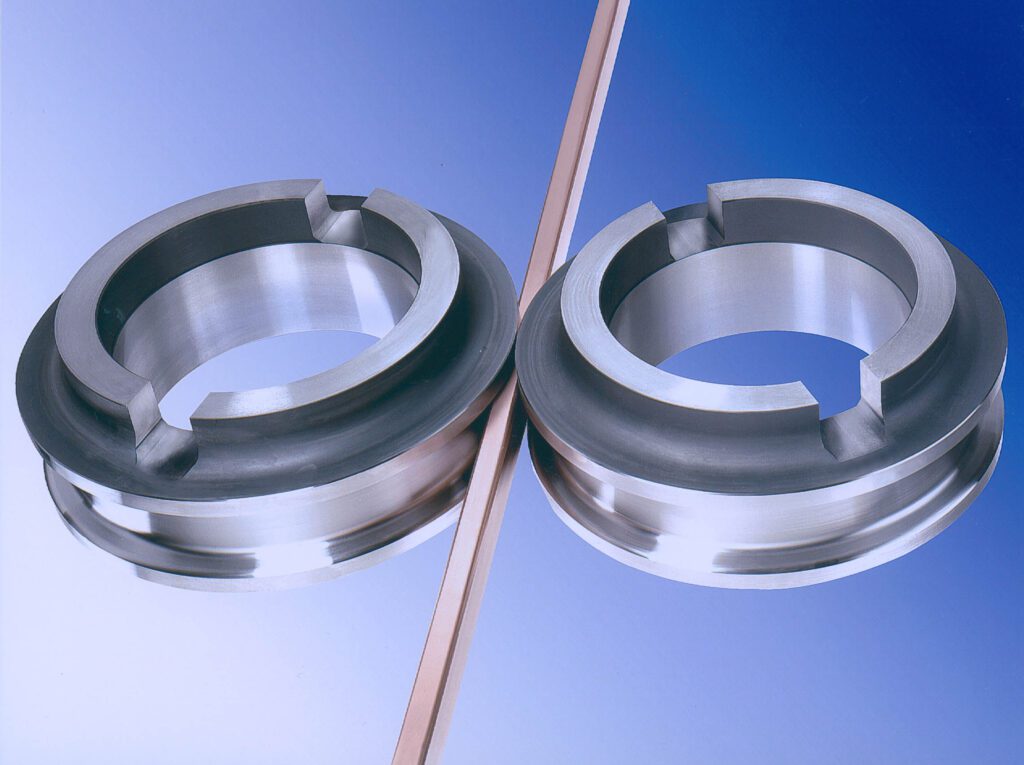

Copper rod is usually produced on continuous casting rolling lines. At Bowers & Jones the roll manufacture is tailored to suit the demands on the roll at each stage of the mill. The quality of the working rolls is crucial to the economic operation of the mill and the quality of the copper rod produced.
The quality of the manufacturing process and the quality of the materials used are critical for the performance and life span of the roll.

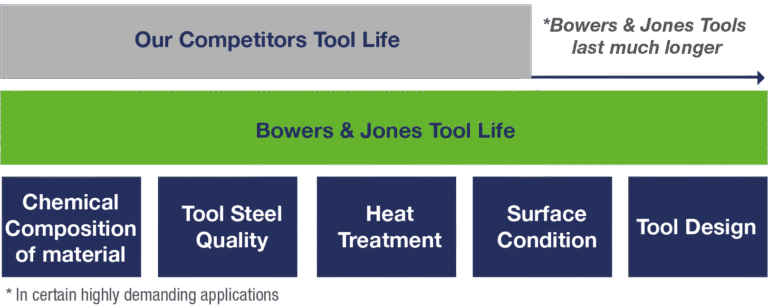

This, in conjunction with the advice provided by Bowers & Jones, will influence the quality of the rolled product. Investment in a high quality roll, combined with Bowers & Jones technical knowledge and expertise, ensures the maximum life in service of the tooling.
Bowers & Jones has developed a range of high performance hot-working tool steels with excellent hot toughness, increased high temperature strength and low susceptibility to thermal cracking.
Only high grade tool steels, produced using the latest steel manufacturing techniques, for obtaining a high level of purity, are used by Bowers & Jones. During the material production stages, our hot working tool steels are specifically heat treated to achieve a fine homogenous structure, which has a significant influence on the performance characteristics of the rolls.
The classic grade DCV has proved successful in most hot working applications. Excellent results have also been obtained in the early mill stands with rolls made from our WM28. For intermediate and final sizing rolls our WM30, with its good high temperature strength and resistance to tempering can also prove beneficial. These grades have properties which exceed that of the common H13 (1.2344) material.
For highly demanding applications, the special high performance hot working tool steels DCM-HP1 and DCM-HP1Premium are available. They distinguish themselves from the standard grades by offering an improved resistance to thermal cracking.
Investment in the high performance hot working steels DCM-HP1 or DCM-HP1Premium can be highly cost effective due to the much improved service life in highly demanding applications.
For further information and advice on which grade of hot working tool steel would be applicable to your specific needs, please contact our sales team who will be happy to give you more detailed technical advice and support.
Characteristics:
High perfomance CrMoV – based hot working tool steel.
DCM HP1Premium is manufactured using a specialised metallurgical process offering a high degree of purity with very low content of trace elements and maximum homogeneity. The production sequence includes specific treatments designed to improve the structure. Compared to conventionally produced grades the steel distinguishes itself through its very high hot strength while simultaneously showing an increased toughness. The chemical composition of DCM HP1Premium has been selected so as to combine an excellent thermal conductivity and a high resistance to heat checking.
Applications:
Hot working tool steel for highest requirements:
Because of its very good high-temperature strength and toughness, the steel is excellent for highly stressed hot work tooling, e.g. for extrusion tooling, hot forming rolls or copper rod rolls.
| Nominal Analysis | C | Si | Mn | Cr | Mo | V | |
|---|---|---|---|---|---|---|---|
| DCM HP1Premium | 0.36 | 0.20 | 0.40 | 5.10 | 2.35 | 0.55 | % |
| Recommended materials | Materials No. | AISI (ASTM) | Suited for* | Nominal Analysis | |||||
|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | Cr | Mo | V | ||||
| DCM-HP1 | – | – | CR + CRE | 0.36 | 0.30 | 0.30 | 5.10 | 2.50 | 0.55 |
| DCM-HP1Premium | – | – | CR + CRE | 0.36 | 0.20 | 0.40 | 5.10 | 2.35 | 0.55 |
| WM 28 | 1.2365 | H10 | CR | 0.32 | 0.25 | 0.30 | 3.00 | 2.80 | 0.55 |
| WM 30 | 1.2367 | – | CR + CRE | 0.38 | 0.40 | 0.40 | 5.00 | 3.00 | 0.55 |
| DCV | 1.2344 | H13 | CR + CRE | 0.40 | 1.05 | 0.40 | 5.20 | 1.35 | 1.00 |
